Uma Solução de Busca Semântica de Código para o TrakCare Utilizando o IRIS Vector Search

Este artigo apresenta uma solução em potencial para a busca semântica de código no TrakCare usando o IRIS Vector Search.

Aqui está uma breve visão geral dos resultados da busca semântica de código do TrakCare para a consulta: "Validação antes de salvar o objeto no banco de dados".



  • Modelo de Embedding de Código

Existem diversos modelos de embedding desenvolvidos para frases e parágrafos, mas eles não são ideais para embeddings específicos de código.

Foram avaliados três modelos de embedding específicos para código: voyage-code-2, CodeBERT e GraphCodeBERT. Embora nenhum desses modelos tenha sido pré-treinado para a linguagem ObjectScripts, eles ainda superaram os modelos de embedding de propósito geral nesse contexto.

O CodeBERT foi escolhido como o modelo de embedding para esta solução, oferecendo desempenho confiável sem a necessidade de uma chave de API.😁

class GraphCodeBERTEmbeddingModel:
    def __init__(self, model_name="microsoft/codebert-base"):
        self.tokenizer = RobertaTokenizer.from_pretrained(model_name)
        self.model = RobertaModel.from_pretrained(model_name)

    def get_embedding(self, text):
        """
        Generate a CodeBERT embedding for the given text.
        """
        inputs = self.tokenizer(text, return_tensors="pt", max_length=512, truncation=True, padding="max_length")
        with torch.no_grad():
            outputs = self.model(**inputs)
        # Use the [CLS] token embedding for the representation
        cls_embedding = outputs.last_hidden_state[:, 0, :].squeeze().numpy()
        return cls_embedding



  • Banco de Dados Vetorial IRIS

Uma tabela é definida com uma coluna do tipo VECTOR para armazenar os embeddings. Observe que o índice COLUMNAR não é suportado para colunas do tipo VECTOR.

Os embeddings do CodeBERT possuem 768 dimensões. Ele pode processar textos com comprimento máximo de 512 tokens.

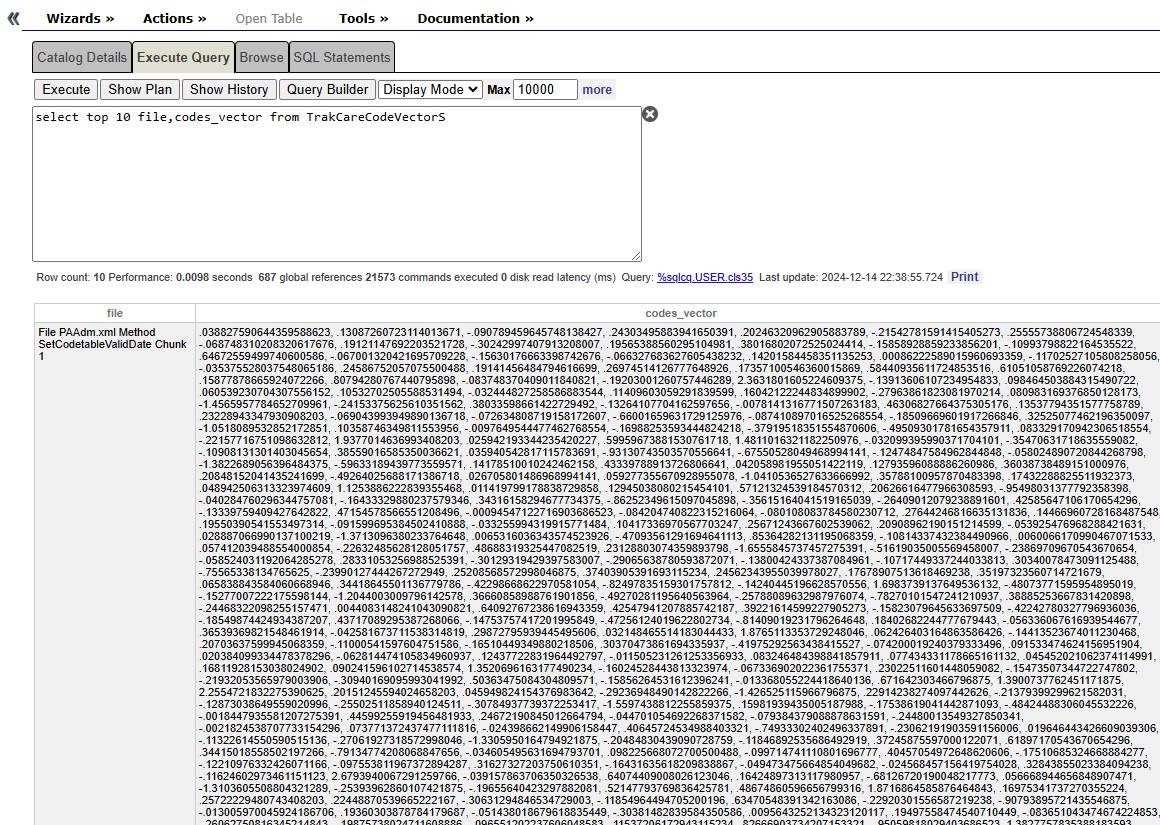

CREATE TABLE TrakCareCodeVector (
                file VARCHAR(150),
                codes VARCHAR(2000),
                codes_vector VECTOR(DOUBLE,768)
            )



  • API DB Python

A API DB Python é utilizada para estabelecer uma conexão com a instância IRIS e executar as instruções SQL.

  1. Construir o Banco de Dados Vetorial para o Código Fonte TrakCare
  2. Recuperar os Top_K Embeddings de Código com Maior DOT_PRODUCT do Banco de Dados Vetorial IRIS
# build IRIS vector database
import iris
import os
from dotenv import load_dotenv

load_dotenv()

class IrisConn:
    """Connection with IRIS instance to execute the SQL statements """
    def __init__(self) -> None:
        connection_string = os.getenv("CONNECTION_STRING")
        username = os.getenv("IRISUSERNAME")
        password = os.getenv("PASSWORD")

        self.connection = iris.connect(
            connectionstr=connection_string,
            username=username,
            password=password,
            timeout=10000,
        )
        self.cursor = self.connection.cursor()

    def insert(self, params: list):
        try:
            sql = "INSERT INTO TrakCareCodeVector (file, codes, codes_vector) VALUES (?, ?, TO_VECTOR(?,double))"
            self.cursor.execute(sql,params)
        except Exception as ex:
            print(ex)

    def fetch_query(self, query: str):
        self.cursor.execute(query)
        return self.cursor.fetchall()

    def close_db(self):
        self.cursor.close()
        self.connection.close()

from transformers import AutoTokenizer, AutoModel, RobertaTokenizer, RobertaModel, logging
import torch
import numpy as np
import os
from db import IrisConn
from GraphcodebertEmbeddings import MethodEmbeddingGenerator
from IRISClassParser import parse_directory
import sys, getopt

class GraphCodeBERTEmbeddingModel:
    def __init__(self, model_name="microsoft/codebert-base"):
        self.tokenizer = RobertaTokenizer.from_pretrained(model_name)
        self.model = RobertaModel.from_pretrained(model_name)

    def get_embedding(self, text):
        """
        Generate a CodeBERT embedding for the given text.
        """
        inputs = self.tokenizer(text, return_tensors="pt", max_length=512, truncation=True, padding="max_length")
        with torch.no_grad():
            outputs = self.model(**inputs)
        # Use the [CLS] token embedding for the representation
        cls_embedding = outputs.last_hidden_state[:, 0, :].squeeze().numpy()
        return cls_embedding

class IrisVectorDB:
    def __init__(self, vector_dim):
        """
        Initialize the IRIS vector database.
        """
        self.conn = IrisConn()
        self.vector_dim = vector_dim

    def insert(self, description: str, codes: str, vector):
        params=[description, codes, f'{vector.tolist()}']
        self.conn.insert(params)

    def search(self, query_vector, top_k=5):
        query_vectorStr = query_vector.tolist()
        query = f"SELECT TOP {top_k} file,codes FROM TrakCareCodeVector ORDER BY VECTOR_COSINE(codes_vector, TO_VECTOR('{query_vectorStr}',double)) DESC"
        results = self.conn.fetch_query(query)
        return results

# Chatbot for code retrieval
class CodeRetrieveChatbot:
    def __init__(self, embedding_model, vector_db):
        self.embedding_model = embedding_model
        self.vector_db = vector_db

    def add_to_database(self, description, code_snippet, embedding = None):
        if embedding is None:
            embedding = self.embedding_model.get_embedding(code_snippet)
        self.vector_db.insert(description, code_snippet, embedding)

    def retrieve_code(self, query, top_k=5):
        """
        Retrieve the most relevant code snippets for the given query.
        """
        query_embedding = self.embedding_model.get_embedding(query)
        results = self.vector_db.search(query_embedding, top_k)
        return results
  • Fragmentos de Código (Code Chunks)

Como o CodeBERT consegue processar textos com um comprimento máximo de 512 tokens, classes e métodos muito grandes precisam ser divididos em partes menores. Cada uma dessas partes, ou fragmentos de código, é então incorporada (embedded) e armazenada no banco de dados vetorial.

from transformers import AutoTokenizer, AutoModel, RobertaTokenizer, RobertaModel
import torch
from IRISClassParser import parse_directory

class MethodEmbeddingGenerator:
    def __init__(self, model_name="microsoft/codebert-base"):
        """
        Initialize the embedding generator with CodeBERT.

        :param model_name: The name of the pretrained CodeBERT model.
        """
        self.tokenizer = RobertaTokenizer.from_pretrained(model_name)
        self.model = RobertaModel.from_pretrained(model_name)
        self.max_tokens = self.tokenizer.model_max_length  # Typically 512 for CodeBERT
    def chunk_method(self, method_implementation):
        """
        Split method implementation into chunks based on lines of code that approximate the token limit.

        :param method_implementation: The method implementation as a string.
        :return: A list of chunks.
        """
        lines = method_implementation.splitlines()
        chunks = []
        current_chunk = []
        current_length = 0
        for line in lines:
            # Estimate tokens of the line
            line_token_estimate = len(self.tokenizer.tokenize(line))
            if current_length + line_token_estimate <= self.max_tokens - 2:
                current_chunk.append(line)
                current_length += line_token_estimate
            else:
                # Add the current chunk to chunks and reset
                chunks.append("\n".join(current_chunk))
                current_chunk = [line]
                current_length = line_token_estimate

        # Add the last chunk if it has content
        if current_chunk:
            chunks.append("\n".join(current_chunk))

        return chunks

    def get_embeddings(self, method_implementation):
        """
        Generate embeddings for a method implementation, handling large methods by chunking.

        :param method_implementation: The method implementation as a string.
        :return: A list of embeddings (one for each chunk).
        """
        chunks = self.chunk_method(method_implementation)
        embeddings = {}

        for chunk in chunks:
            inputs = self.tokenizer(chunk, return_tensors="pt", truncation=True, padding=True, max_length=self.max_tokens)
            with torch.no_grad():
                outputs = self.model(**inputs)
                # Use the [CLS] token embedding (index 0) as the representation
                cls_embedding = outputs.last_hidden_state[:, 0, :].squeeze(0)
                embeddings[chunk] = cls_embedding.numpy()

        return embeddings

    def process_methods(self, methods):
        """
        Process a list of methods to generate embeddings for each.

        :param methods: A list of dictionaries with method names and implementations.
        :return: A dictionary with method names as keys and embeddings as values.
        """
        method_embeddings = {}
        for method in methods:
            method_name = method["name"]
            implementation = method["implementation"]
            print(f"Processing method embedding: {method_name}")
            method_embeddings[method_name] = self.get_embeddings(implementation)
        return method_embeddings
  • Interface do Usuário - O Aplicativo Angular

A arquitetura utiliza Angular como frontend e Python (Flask) como backend.



  • Próximos Passos

O resultado da busca não é perfeito porque o modelo de embedding não foi pré-treinado para ObjectScripts.
